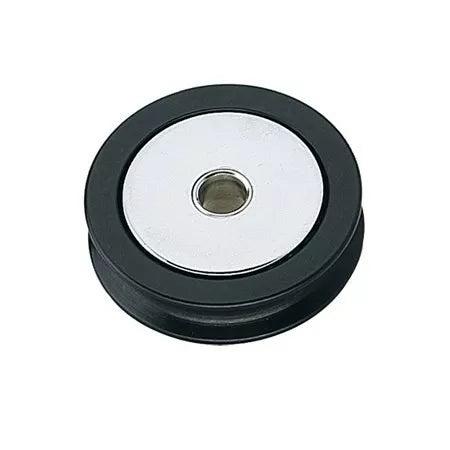

38mm Wire Sheave [307]
38mm Wire Sheave [307]

38mm Wire Sheave [307]

Self-contained sheaves are designed for sailors to use in custom applications. Wire sheaves are Hard Lube-anodized aluminum that ride on high-load composite bearings.
Vendor: Harken
Availability: Out Of Stock
$47.95
$54.75
$47.95
Hurry up! only 0 left
Subtotal: $47.95
38mm Wire Sheave [307]

Harken

38mm Wire Sheave [307]

$54.75 $47.95
38mm Wire Sheave [307]

Harken

38mm Wire Sheave [307]

$54.75 $47.95
Self-contained sheaves are designed for sailors to use in custom applications. Wire sheaves are Hard Lube-anodized aluminum that ride on high-load composite bearings.
  • Sheave Ø (mm): 38 mm
  • Sheave Ø (in): 1 1/2 in
  • Width (mm): 10 mm
  • Width (in): 13/32 in
  • Weight (g): 28 g
  • Weight (oz): 1 oz
  • Maximum line Ø (mm): 5 mm
  • Maximum line Ø (in): 3/16 in
  • Maximum working load (kg): 680 kg
  • Maximum working load (lb): 1500 lb
  • Center pin Ø (mm): 6.27 mm
  • Center pin Ø (in): 1/4 in
  • Maximum wire Ø (mm): 3 mm
  • Maximum wire Ø (in): 1/8 in
  • Sheave Ø (mm): 38 mm
  • Sheave Ø (in): 1 1/2 in
  • Width (mm): 10 mm
  • Width (in): 13/32 in
  • Weight (g): 28 g
  • Weight (oz): 1 oz
  • Maximum line Ø (mm): 5 mm
  • Maximum line Ø (in): 3/16 in
  • Maximum working load (kg): 680 kg
  • Maximum working load (lb): 1500 lb
  • Center pin Ø (mm): 6.27 mm
  • Center pin Ø (in): 1/4 in
  • Maximum wire Ø (mm): 3 mm
  • Maximum wire Ø (in): 1/8 in
