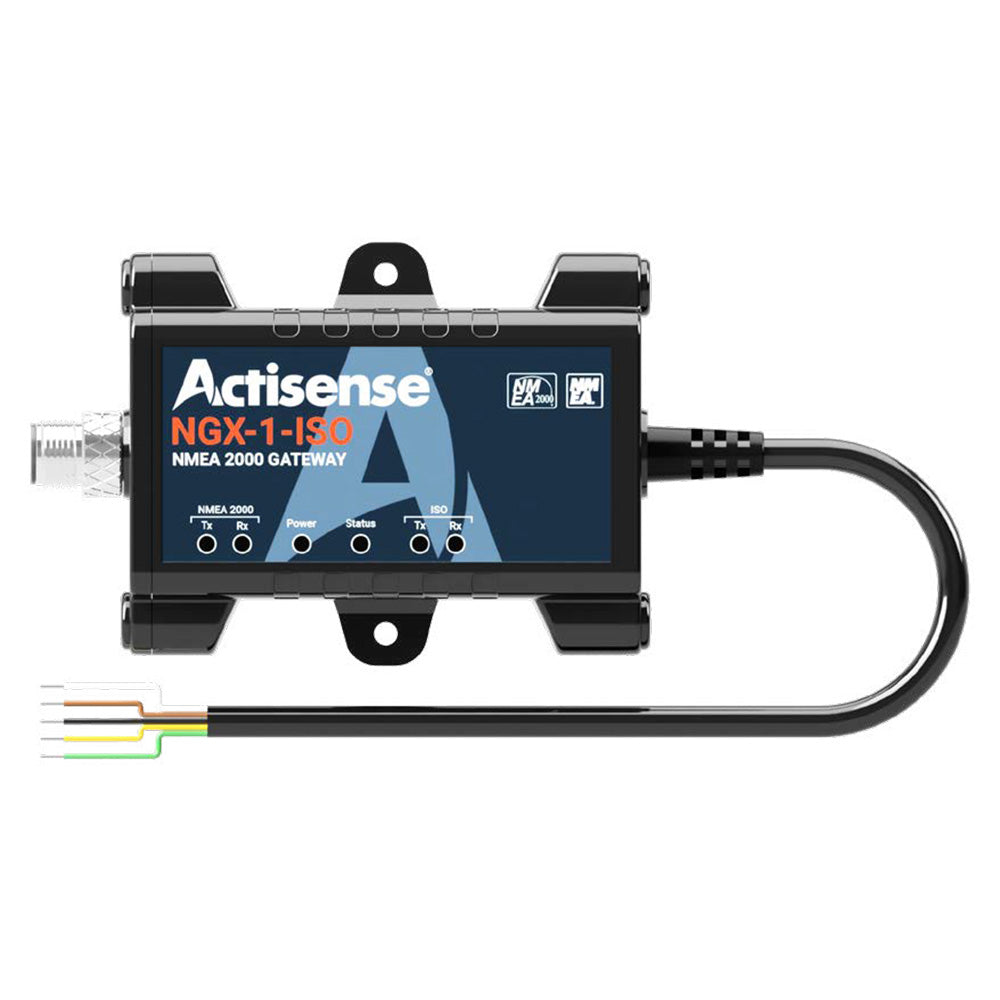

0183 to N2K Gateway with PC Interface, ISO Connection

Intelligent Gateway technology enables PC interfacing and NMEA data conversion…

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.

Features:

• View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
• View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
• Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
• Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
• Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
• Vital NMEA 2000 diagnostic tool
• OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
• Up to 230,400 baud data transfer rate
• Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
• Supports Fast Heading at 10Hz
• Multiple diagnostic LEDs
• Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
• Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
  • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
  • Configure and flash-update Actisense products on the bus
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit

Technical Specifications

Power Supply

• Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
• Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
• Load Equivalent Number (LEN) - 2

NMEA 2000 Port

• Speed / Baud Rate - 250kbps
• Connectivity - M12 Male (A coded)

ISO Port

• Compatibility - Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible
• Speed/Baud Rate - 4800 to 230400 Baud
• Output Voltage Drive - >= 2.1V (differential) into 100Ω
• Output Current Drive - 20mA max.
• Output Protection - Short circuit and ESD
• Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second)
• Input Protection - Current limited and overdrive protection to 40VDC
• Connectivity - 5mm stripped and tinned wire
• Cable Length - 0.75m

Isolation

• NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical

• Housing Material Body - Flame retardant Polycarbonate
• Housing Material End Caps - Flame retardant PBT
• Weight - 113g

Approvals and Certifications

• NMEA 2000 - NMEA 2000 Certified
• NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements
• RoHS and REACH - Compliant
• Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
• EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
• Environmental Protection    IP67
• Operating Temperature    -25°C to +70°C
• Storage Temperature    -30°C to +70°C
• Recommended Humidity    0 to 93% RH @ 40°C
• Guarantee    3 years, extended to 5 years upon registration

Specifications:

• Data Interface: NMEA 0183
• Box Dimensions: 1"H x 5"W x 6"L WT: 0.35 lbs
• UPC: 5060998710553
