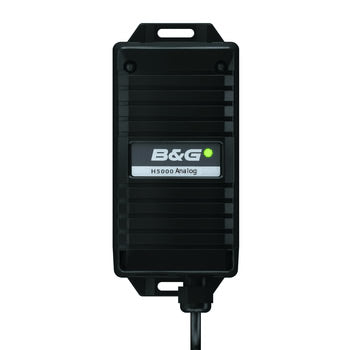

H5000 Analogue Expansion

Interface to allow expansion of an H5000 system to include analogue and pulse signals from compatible 3rd party sensors. H5000 allows these inputs to be assigned to a known function type or to be set up as a custom input with name defined by the user.

0-5V Analogue inputs (6)

0-5V TTL Pulse inputs (2)

Configuration via H5000 CPU web browser

Supplied with interconnect cable and T-piece
