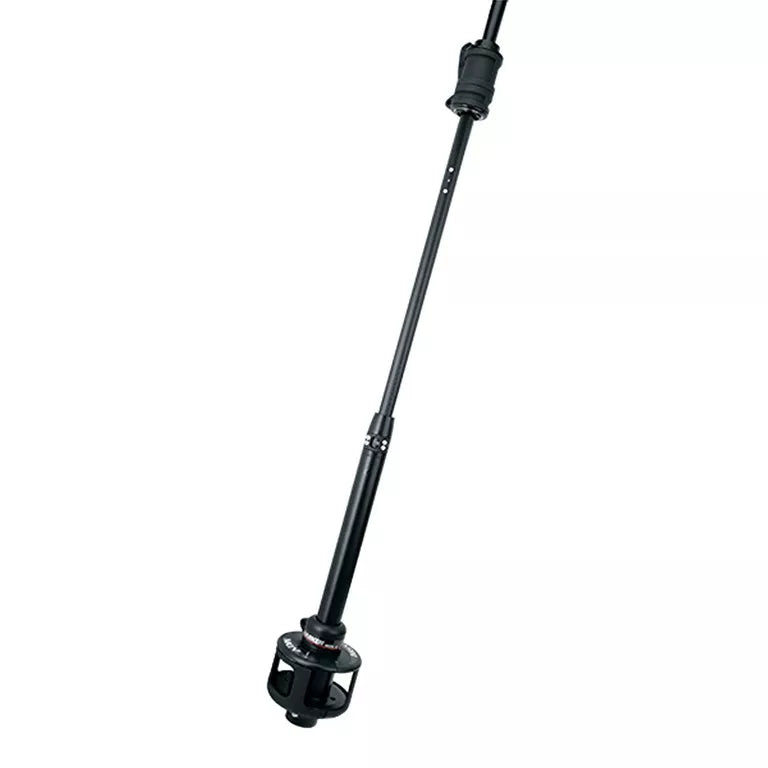

MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design.
Vendor: Harken
Availability: Out Of Stock
$7,990.00
$9,988.00
$7,990.00
Hurry up! only 0 left
Subtotal: $7,990.00
Unit 3 MKIV Jib Furling System [7413.1]

Harken

Unit 3 MKIV Jib Furling System [7413.1]

$9,988.00 $7,990.00
Unit 3 MKIV Jib Furling System [7413.1]
Unit 3 MKIV Jib Furling System [7413.1]

Harken

Unit 3 MKIV Jib Furling System [7413.1]

$9,988.00 $7,990.00
MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design.
  • A (mm): 186 mm
  • A (in): 7 5/16 in
  • B (mm): 296 mm
  • B (in): 11 5/8 in
  • C (mm): 86 mm
  • C (in): 3 3/8 in
  • D (mm): 247 mm
  • D (in): 9 3/4 in
  • E (mm): 121 mm
  • E (in): 4 3/4 in
  • F (mm): 1286 mm
  • F (in): 50 5/8 in
  • G (mm): 467 mm
  • G (in): 18 7/16 in
  • Wire Ø (1 x 19 SS) (mm): 12 mm
  • Wire Ø (1 x 19 SS) (in): 7/16 in
  • Rod Ø (mm): 11.1 mm
  • Rod Ø (dash): -30
  • Clevis pin Ø (mm): 22.2 mm
  • Clevis pin Ø (in): 7/8 in
  • Standard headstay length (m): 22.76 m
  • Standard headstay length (ft in): 74' 8" ft in
  • Maximum headstay length (m): 24.89 m
  • Maximum headstay length (ft in): 81' 8" ft in
  • F maximum (mm): 1286 mm
  • F maximum (in): 50 5/8 in
  • G maximum (mm): 467 mm
  • G maximum (in): 18 7/16 in
  • H (mm): 420 mm
  • H (in): 16 5/8 in
  • H maximum (mm): 420 mm
  • H maximum (in): 16 5/8 in
  • I (mm): 188 mm
  • I (in): 7 3/8 in
  • I maximum (mm): 188 mm
  • I maximum (in): 7 3/8 in
  • J (mm): 38 mm
  • J (in): 1 1/2 in
  • K (mm): 43 mm
  • K (in): 1 11/16 in
  • Extrusion length (m): 2.13 m
  • Extrusion length (ft in): 7' ft in
  • Luff tape size (mm): 5 mm
  • Luff tape size (in): #6 (6/32) in
