Description

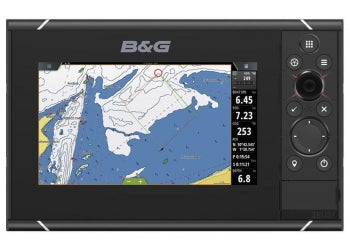

xThe Zeus 3S 9” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment onthe water.
Display Resolution 1280 x 720
Screen Brightness 1200 nits
Waterproofrating IPX6 and 7
Ethernet Ports 1 x 5 pin yellow connector x 10/100 Mbit
NMEA 2000 Connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
Weight 1.41 kg (3.11 lbs.)
Supply Voltage 10 - 31.2 V DC
Update rate 10 Hz
Shock Vibration 100 000 cycles of 20 G
Operating Temperature Range -15°C to +55°C (5° F to 131° F)
Internal Storage 16 GB
SD Card Storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Video 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
Warranty Period 2 Years
Storage Temperature Range -20°C to +60°C (4°F to 140°F)
Power Consumption max 21 W
Dimensions W x H x D
287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
GPS Receiver Channels 34 Channels
Compass Safe 50 cm (1.7 ft)
Recommended Fuse Rating 5A
Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing Angles 80° top/bottom, 80° left/right
Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Mounting Type Bracket (Supplied) or panel mount
GPS Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
Approvals Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Cartography included C-MAP
Time to First Fix Cold start 50 sec, Satellite Reacquisition 5 sec
Digital Switching C-Zone, Naviop
Autopilot Full auto pilot control and commissioning
Interface Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
Radar compatibility Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
NMEA 0183 Sentences supported Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Charts supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+,Reveal) NV Digital (Raster US Charts)
Connectivity Wi Fi Internal
Bluetooth Internal
PC Connectivity No
AIS Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
